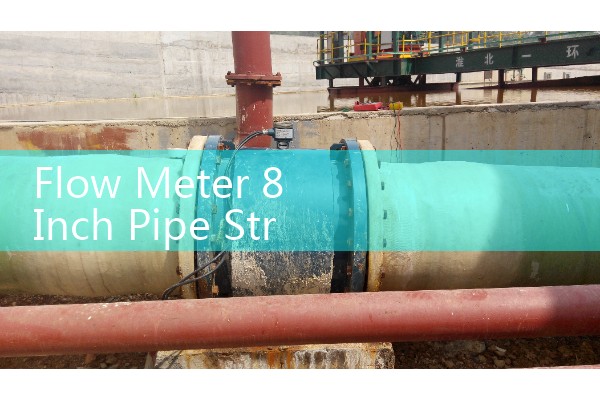

Flow Meter 8 Inch Pipe Straight Run Guidelines: Upstream and Downstream Diameter Ratios
Quick Answer
For an 8 inch DN200 pipe, most flow meters need 10D to 20D upstream straight run and 3D to 5D downstream when installed after elbows, valves, or pumps. Coriolis and oval gear flow meters normally need no straight run. Send your fluid, pipe size, pressure, temperature, and flow range to Silver Automation Instruments for a DN200 flow meter recommendation.
Why Straight Run Matters on DN200 Pipe
Straight run means a length of straight pipe before and after the flow meter. It gives the flow profile time to settle. Disturbances from elbows, reducers, tees, valves, or pumps create swirl and asymmetric velocity. An 8 inch pipe is common in water, wastewater, steam, and fuel oil lines across Southeast Asia, Australia, and the Middle East. A short straight run causes measurement error. We have seen a DN200 electromagnetic meter installed after a butterfly valve with only 3D upstream read 2 to 5 percent high. In practice, this is one of the most common field issues on customer sites.
Electromagnetic Flow Meter Straight Run for 8 Inch Pipe
Use 5D to 10D upstream for a DN200 mag meter when the upstream disturbance is a single elbow or tee. Use 10D or more after a control valve or pump discharge. Downstream straight run should be 2D to 3D. For DN200, 10D equals 2000 mm or 2.0 m. 15D equals 3.0 m. 20D equals 4.0 m. 30D equals 6.0 m.
Silver Automation Instruments supplies the SIL-MAG 200 full bore DN200 electromagnetic flow meter with PTFE liner, 316L electrodes, and 4-20 mA HART output. The meter suits raw water, wastewater, and chemical dosing lines. If the pipe is always full and the conductivity is above 5 µS/cm, this meter works well.
Vortex Flow Meter Straight Run for 8 Inch Pipe
Vortex meters are sensitive to swirl. For an 8 inch line, keep 15D upstream for a single elbow. Keep 30D upstream after a control valve or two elbows in different planes. Use 5D downstream. This applies to steam, compressed air, and natural gas lines.
We supplied a DN200 vortex flow meter to a food oil producer in Vietnam. The meter was originally installed 7D after a pressure reducing valve. The steam flow signal fluctuated more than 4 percent. We moved the meter to a 28D upstream straight section and the signal stabilized within 0.75 percent. The model used was SIL-VOR 200 with integrated temperature and pressure compensation for saturated steam.
Ultrasonic Flow Meter Straight Run for 8 Inch Pipe
Inline ultrasonic meters need 10D upstream and 5D downstream in many clean water applications. Clamp-on ultrasonic meters may need 15D to 20D upstream if two elbows are close. On an 8 inch pipe, 10D is 2.0 m and 20D is 4.0 m. Silver Instruments offers the SIL-SONIC 200 inline and clamp-on ultrasonic flow meter for DN200 with RS485 and 4-20 mA outputs.
Thermal Mass Flow Meter Straight Run for 8 Inch Gas
For air, biogas, or natural gas in an 8 inch line, use 10D to 15D upstream and 5D downstream. Insertion thermal mass flow meters work well in large pipes. Silver Instruments supplies the SIL-TMF 200 thermal mass flow meter with 4-20 mA and Modbus RTU. Many customers in Australia use these meters for compressed air monitoring.
Coriolis and Oval Gear Flow Meter Straight Run
Coriolis mass flow meters do not need straight run. The tubes measure mass directly and swirl does not affect performance. The same applies to oval gear flow meters on fuel oil and diesel lines. Use them on 8 inch high viscosity chemical lines where space is small. Keep the pipe full and avoid cavitation. Silver Instruments supplies SIL-COR 200 Coriolis mass flow meters with 4-20 mA HART and mass flow accuracy of 0.2 percent. We also supply oval gear flow meters for smaller diesel and light oil lines.
How to Calculate Straight Run for DN200
Take the nominal diameter D as 200 mm. Multiply D by the required ratio. For example, 10D is 200 mm times 10 equals 2000 mm. That is 2.0 m. 5D is 1.0 m. 20D is 4.0 m. 30D is 6.0 m. Measure from the downstream face of the last disturbance to the meter body. Use the same method for downstream length from the meter outlet.
Installation Tips for 8 Inch Flow Meters
Do not install a DN200 flow meter at the highest point of a water line. Air bubbles collect there. Do not install a mag meter on a partially filled pipe. Keep the meter tube full at all times. For wastewater, use a flow meter with electrodes rated for grease and solids. For gas, install the meter with the flow direction arrow matching the pipe. Most engineers skip this part but we have seen reversed thermal mass meters on customer sites many times.
FAQ: 8 Inch Flow Meter Straight Run
What is the minimum straight run for an 8 inch electromagnetic flow meter?
Use 5D to 10D upstream and 2D to 3D downstream. If the meter is after a pump or control valve, use 10D upstream.
Can I install a flow meter after a control valve on an 8 inch pipe?
Yes, but you need more straight run. For a vortex meter use 30D upstream. For a mag meter use 10D or more. Send us a simple piping sketch if you are not sure.
Do Coriolis meters need straight run on DN200 lines?
No. Coriolis meters measure mass flow and do not require upstream or downstream straight run.
How do I calculate 10D on an 8 inch pipe?
Use D equals 200 mm. 10D equals 2000 mm or 2.0 m. 15D is 3.0 m. 20D is 4.0 m.
What details do you need for a DN200 flow meter quote?
Send us the fluid, flow range in m3/h or kg/h, pressure in bar, temperature in °C, pipe size, and output signal. We will recommend a meter and straight run layout.
Contact Silver Automation Instruments for an 8 inch DN200 flow meter selection. Tel: +86-25-68650347. Whatsapp: +86-25-52155837. WeChat: +86 15365082610. Website: flow-meter.com.au
